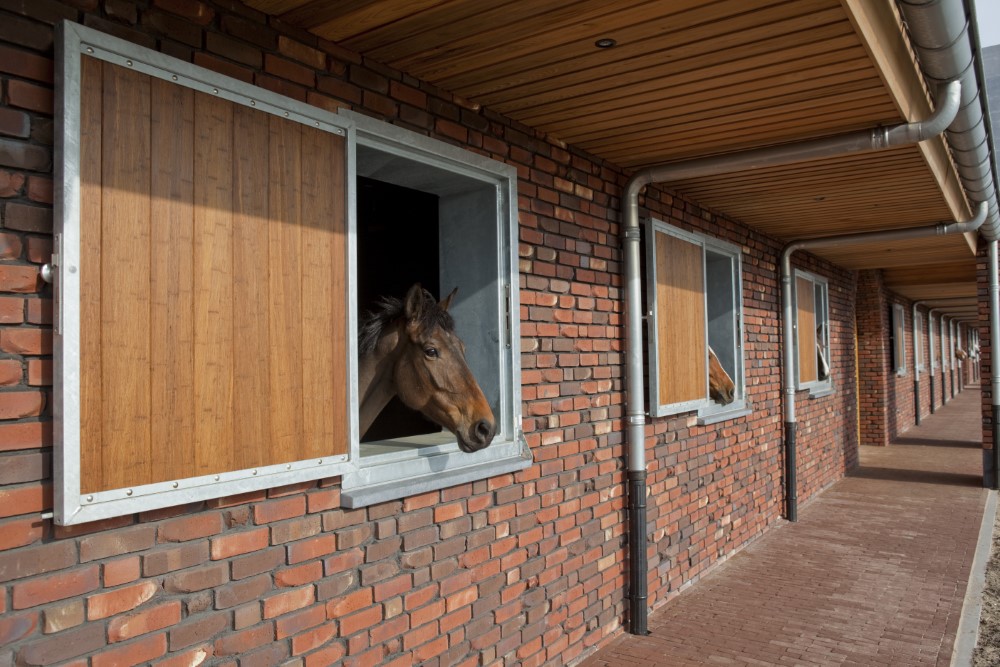

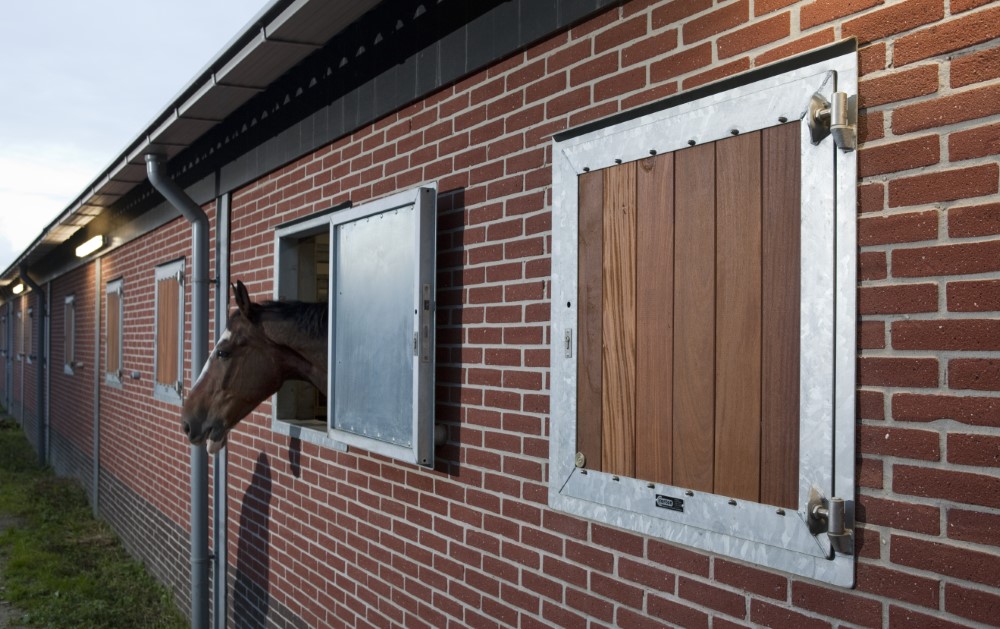

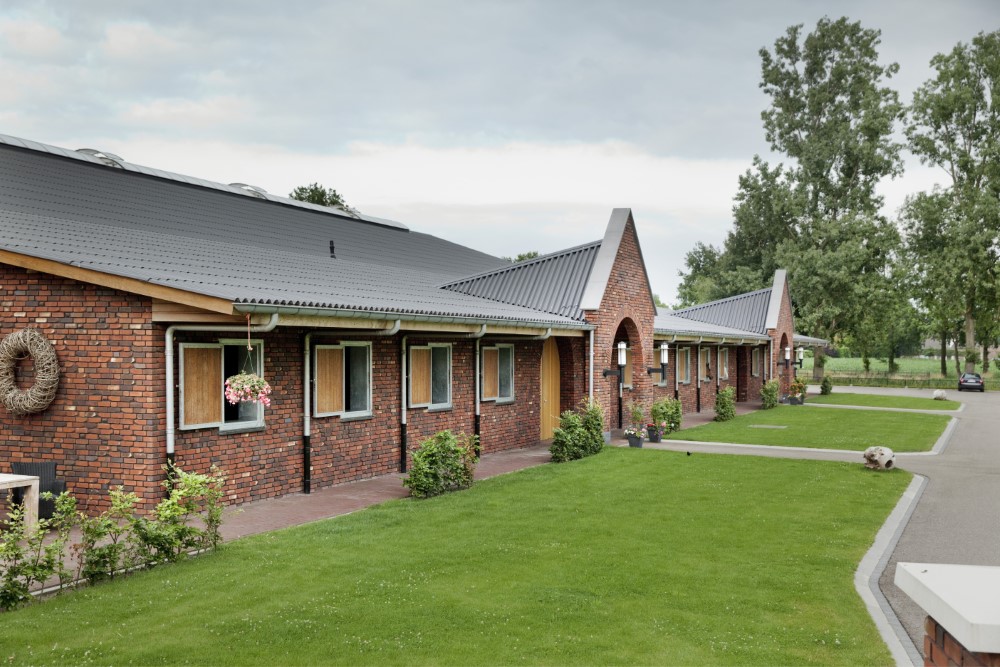

Exterior shutters |
|
|
|
For additional fresh air Corton supplies heavy steel
shutters with boards. The shutters are fitted with
galvanised bite plates on the inside and have
adjustable stainless hinge points, a built-in lock
and an additional cylinder lock.

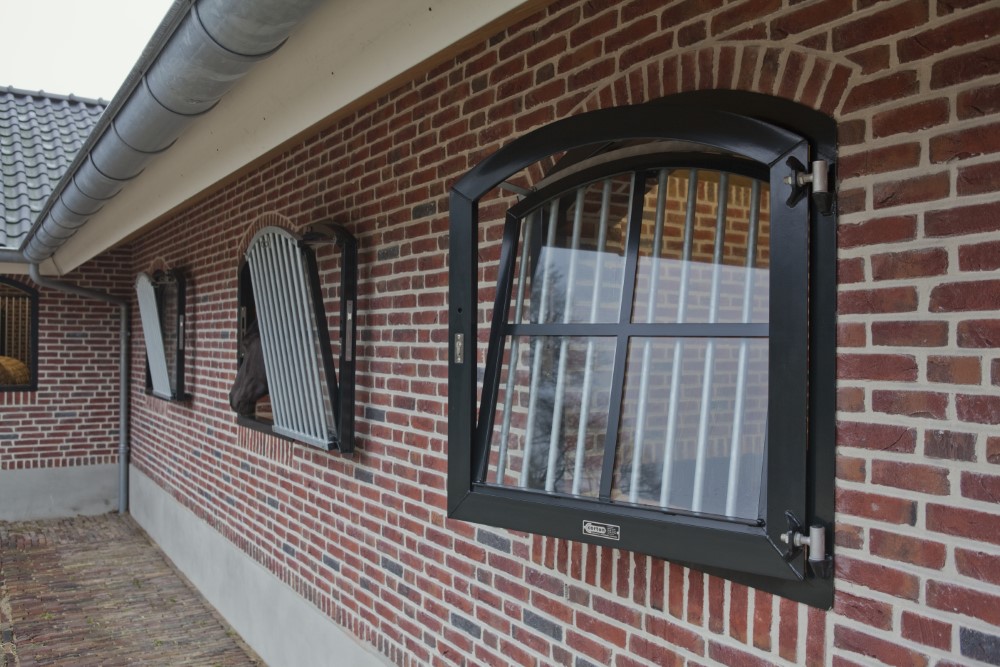

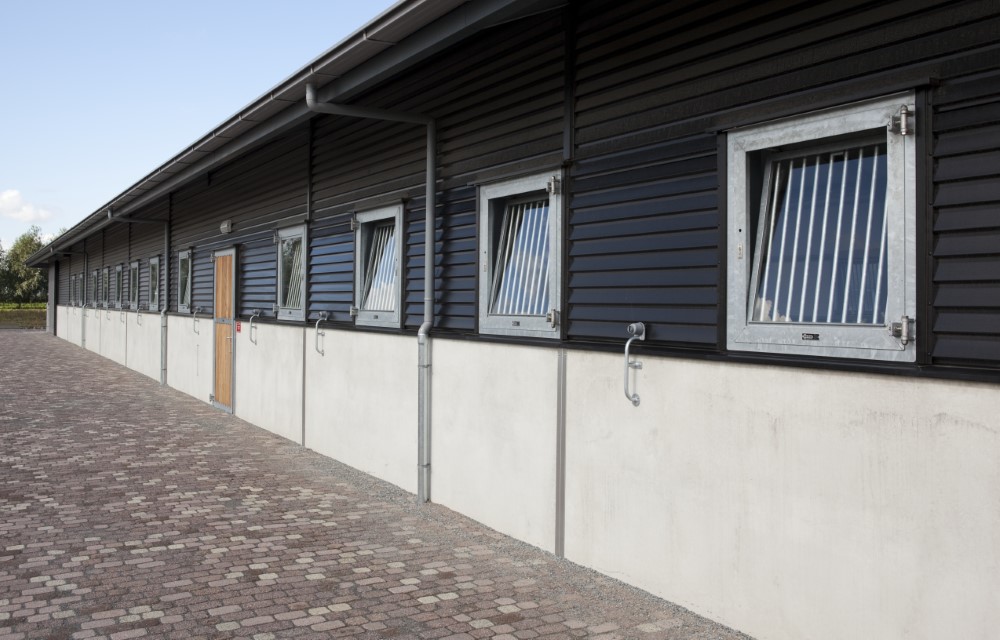

Exterior shutters are available with safety glass,
which allows more light into the stable. For extra

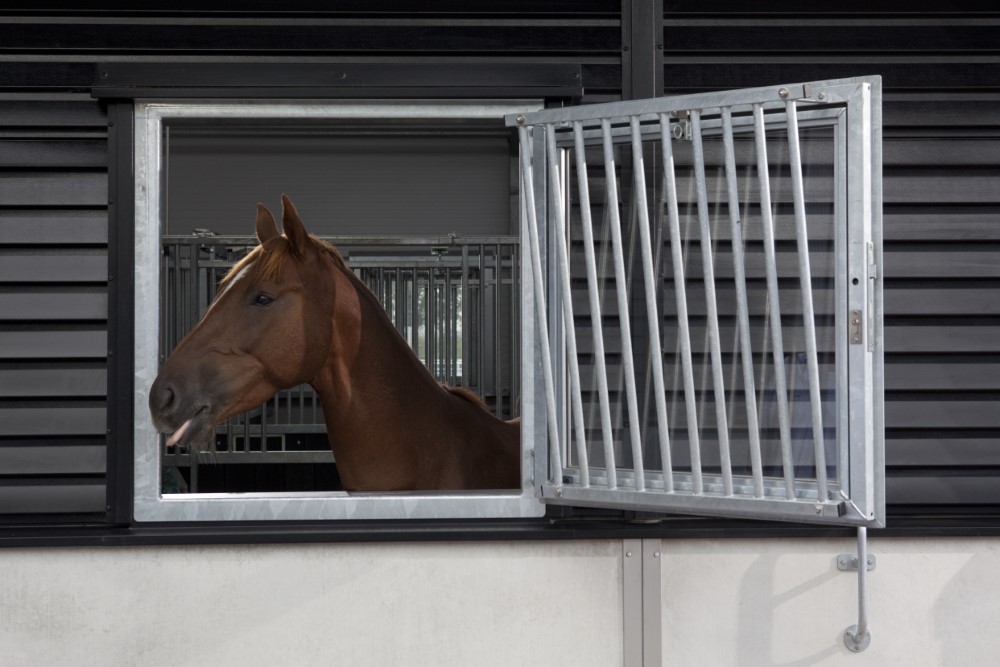

protection a grille with solid bars can be mounted
behind the glass. A pivot tilting system is
available for extra ventilation in the stable. |
|
|
| |
|
|
| |
|
|

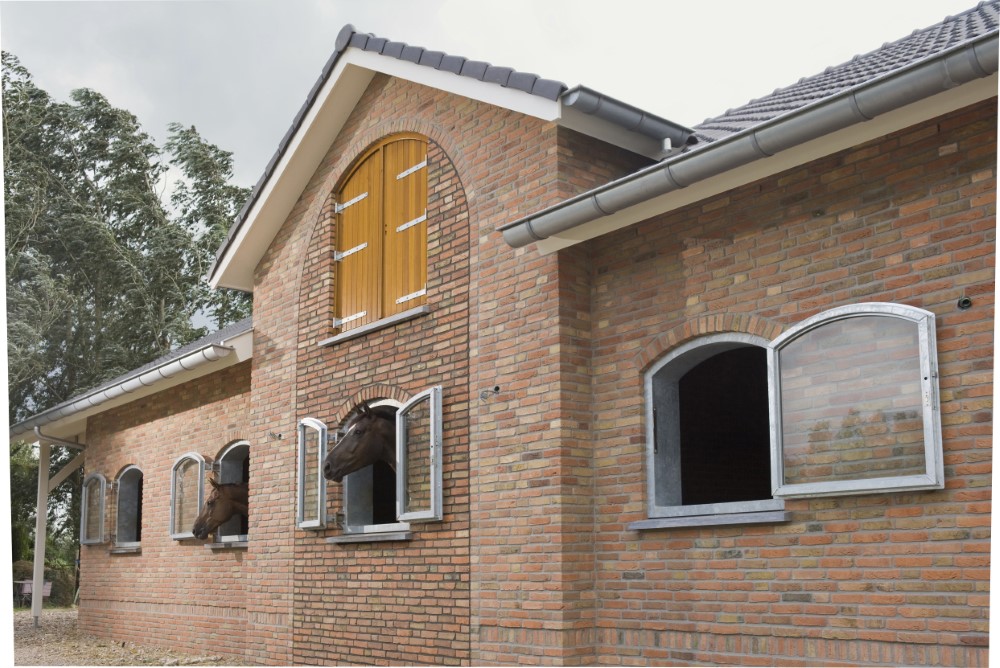

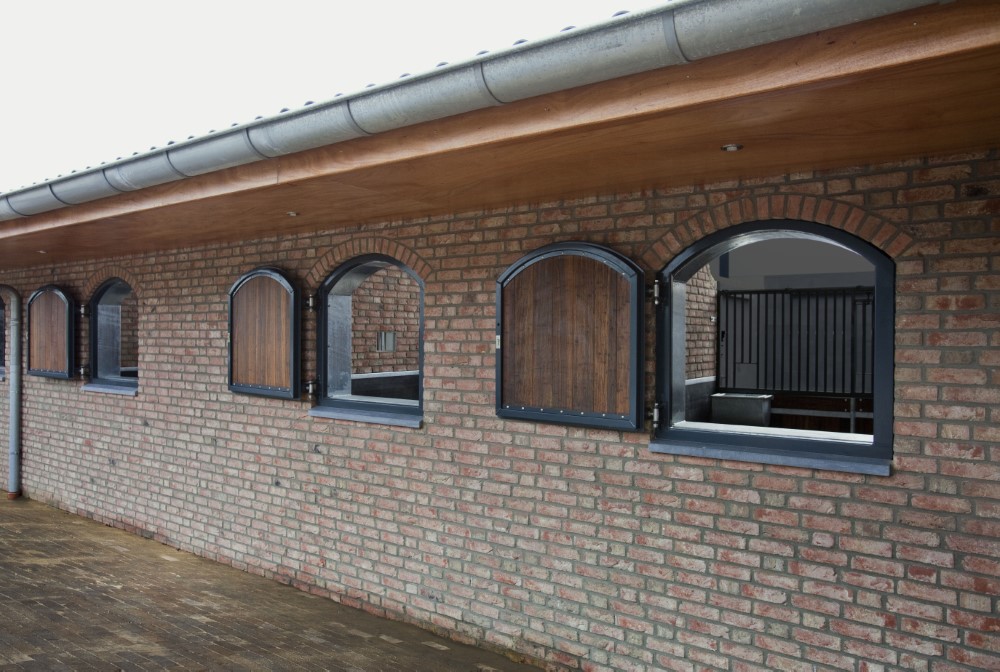

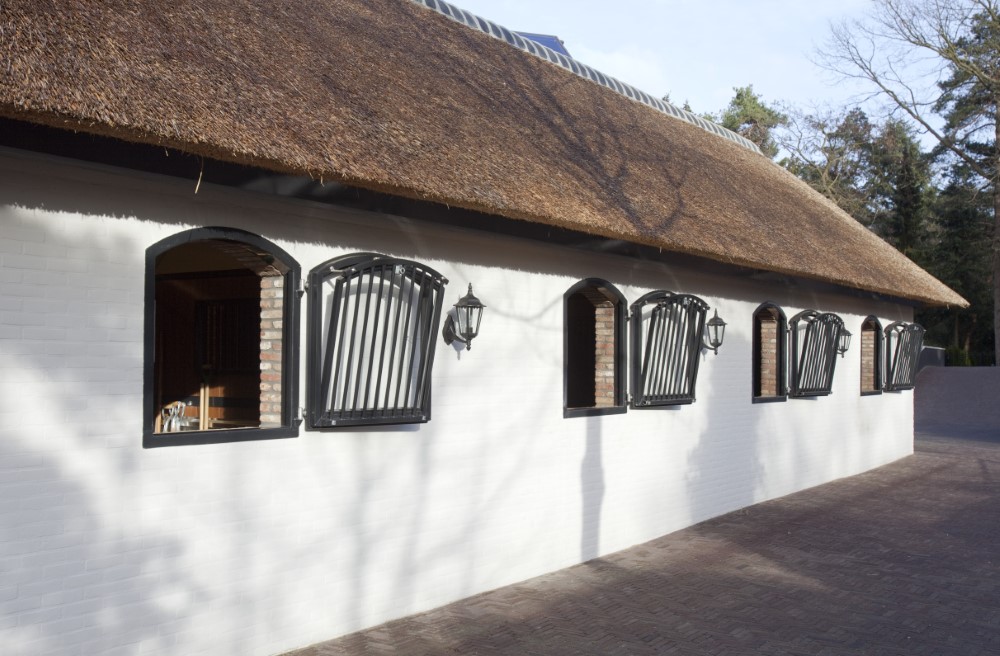

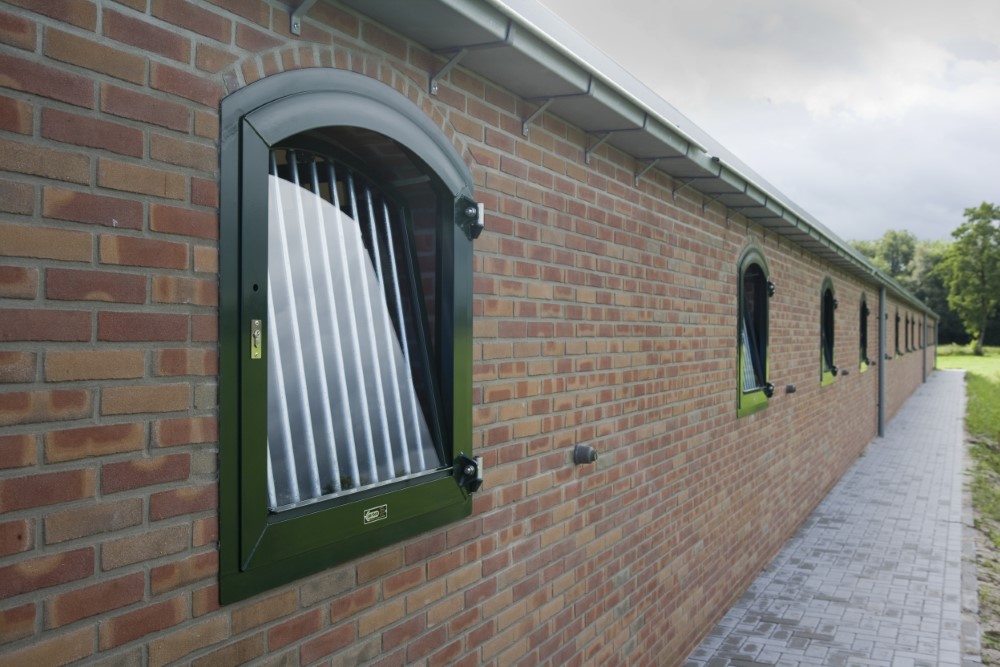

There are also exterior shutters with a rounded top,
optional with an additional diamond motif. All
exterior shutters have a so called weathering at the
top.
A magnetic stopper ensures that the shutter in the
open position is clamped against the wall. Instead
of single glass, insulating glass can also be
applied.
All Corton exterior shutters and doors can be
supplied with a colour coating in the desired RAL
colour. |
|
|
luikoverz4.jpg) |
| |
|
|
| |
|
130712-024.jpg) |
| |
Shutter
type "Professional" |
|
|
|
● |
Available for building in existing wall or
bricking-in into new brick wall |
|
|
|
● |
Hinges left or right |
|
|
|
● |
Strong steel shutter, made of special steel channel
with flanges around |
|
|
|
● |
Main frame with
anti-leak strip at the top |
|
|
|
● |
Specially rolled
casing profile of 100 mm depth |
|
|
|
● |
Built-in lock to be
operated from inside and outside with a pocket key |
|
|
|
● |
Standard provided with
extra cylinder |
|
|
|
● |
Solid plastic
Govaplast boards black/brown, inclusive Govaplast
steel reinforcement profiles. Each board
individually attached with stainless steel bolts and
rounded nuts. |
|
|
|
● |
Stainless steel
adjustable hinges |
|
|
|
● |
Stainless steel
adjustable locking plate |
|
|
| |
|
|
| |
|
|
Types |
|
|
● |
Shutter "Professional" 1000x1000 mm, fully
assembled, including plastic boards and galvanised
steel sheeting on the inside, also available with
arch |
|
|
|
|
|
|
● |
Shutter "Professional"
1000x1000 mm, with safety glass 3.3.2. (7mm thick),
also available with arch |
|
|
● |
Frame with bars behind
te glass,also available with arch |
|
|
|
|
|
|
● |
Shutter "Professional"
1000x1000 mm, with tip and turn window system and
safety glass 3.3.2. (7mm thick) including frame with
bars
Ø22 mm, also available
with arch |
|
|
.jpg) |
| |
|
|
| |
|
luikoverz..jpg) |
| |
Options |
|
|
|
● |
Surcharge for door-knob on inside and outside |
|
|
|
● |
Retainer magnet, heavy duty type |
|
|
|
● |
Isolated safety glass 2 x 3.3.2 + 10 isolation (23,5
mm thick) |
|
|
| |
|
|
|
|
|
|
|
|
|
 |
 |
 |
|
Type "Professional",
planken |
Type "Professional,
glas |
Type "Professional,
draai-/kiep |
| |
|
|
|
 |
 |
 |
|
Type "Professional",
planken |
Type "Professional,
glas |
Type "Professional,
draai-/kiep |
|
met toog |
met toog |
met toog |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
|
Type "Standard",
planken |
Type "Standard",
glas |
Type "Standard",
draai-/kiep |
|
|
|
|
|
|
|
|
|
|
|
|
