Exterior doors

	Exterior doors

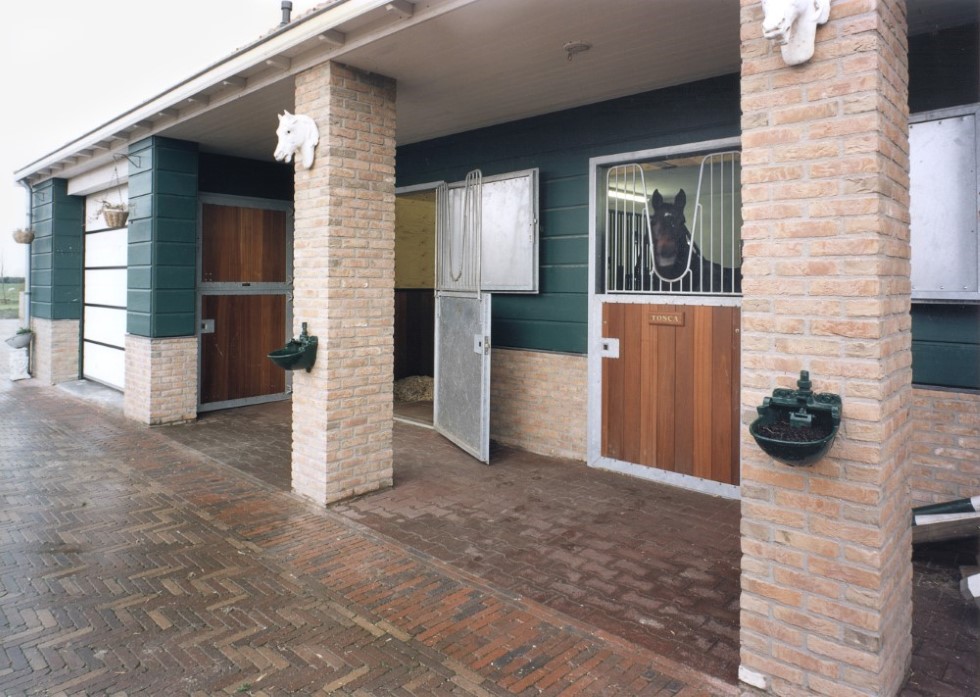

	Horizontally divided doors give access to the stall, also have the advantages of an exterior shutter and are of similar quality. On the inside, the bottom door is fitted with a galvanised kick plate. The frames of exterior shutters and doors are manufactured in such a way that they can be cemented in new walls. The are fastened with bolts in wooden or existing walls. For a safe and rounded finish of the inside of the wall and for closing the wall cavity, counter frames are available.

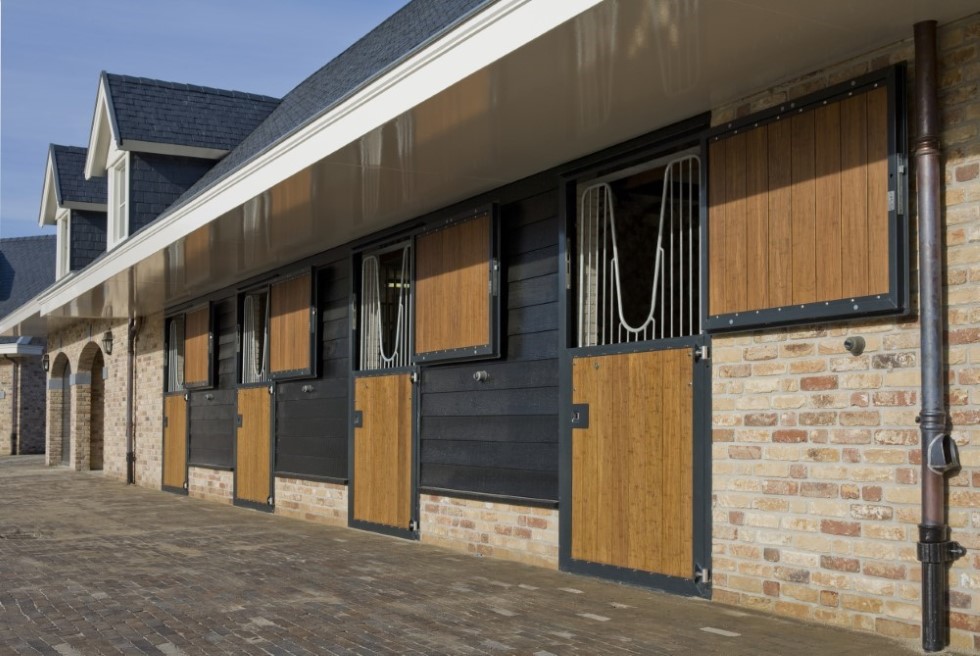

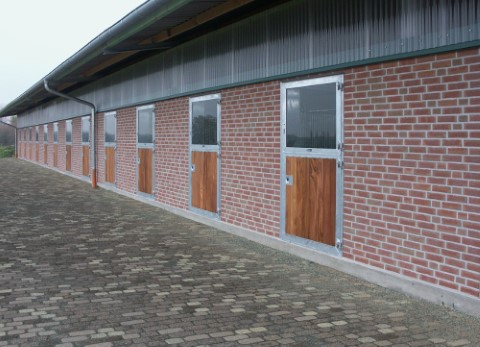

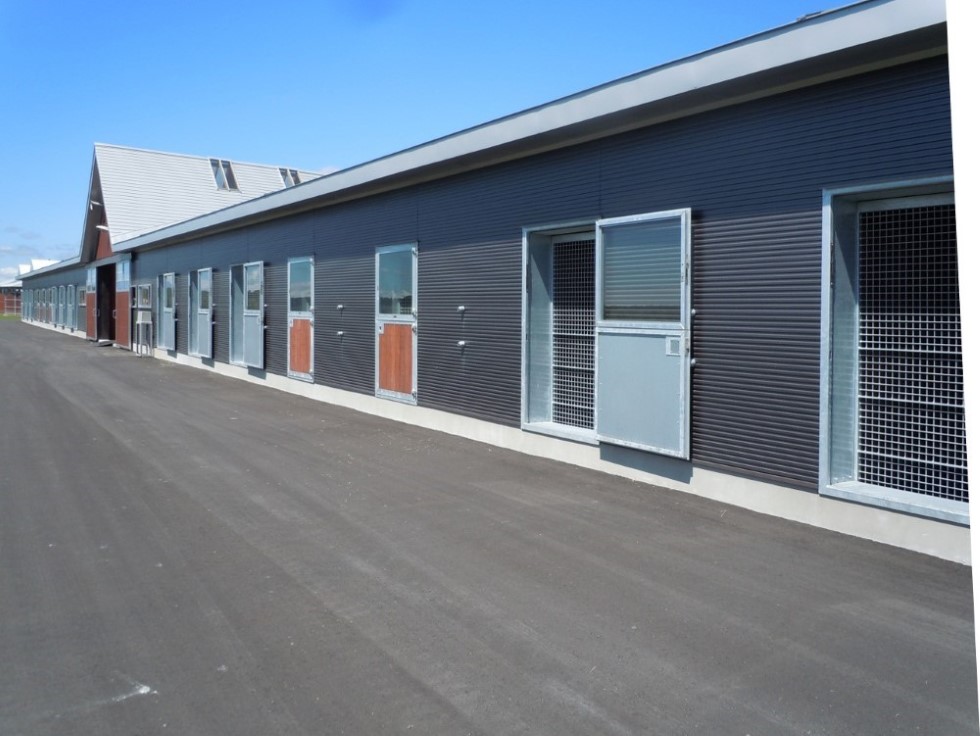

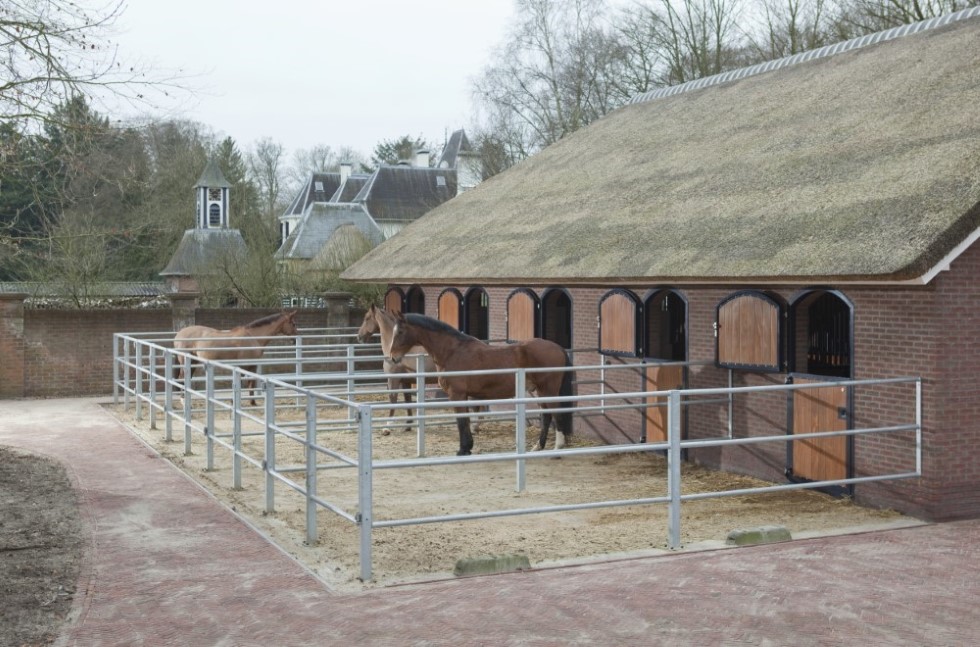

Stall doors with boards or safety glass on top often serve as exits to a paddock or pasture. They are large enough to ensure a safe passage for the horse. The flush-mounted locks (with additional cylinder lock) can be operated from the inside and the outside. Doors and frames are constructed so that the horse can virtually get no grip on them with its teeth. A matching weave grill is available.

	External door type "Professional"
	●	Available for building in existing wall or bricking-in into new brick wall
	●	Hinges left or right available
	●	Seperated top- and bottom door, strong steel doors, made of special steel channel with flanges around
	●	Main frame with anti-leak strip at the top
	●	Specially rolled casing profile of 100 mm depth

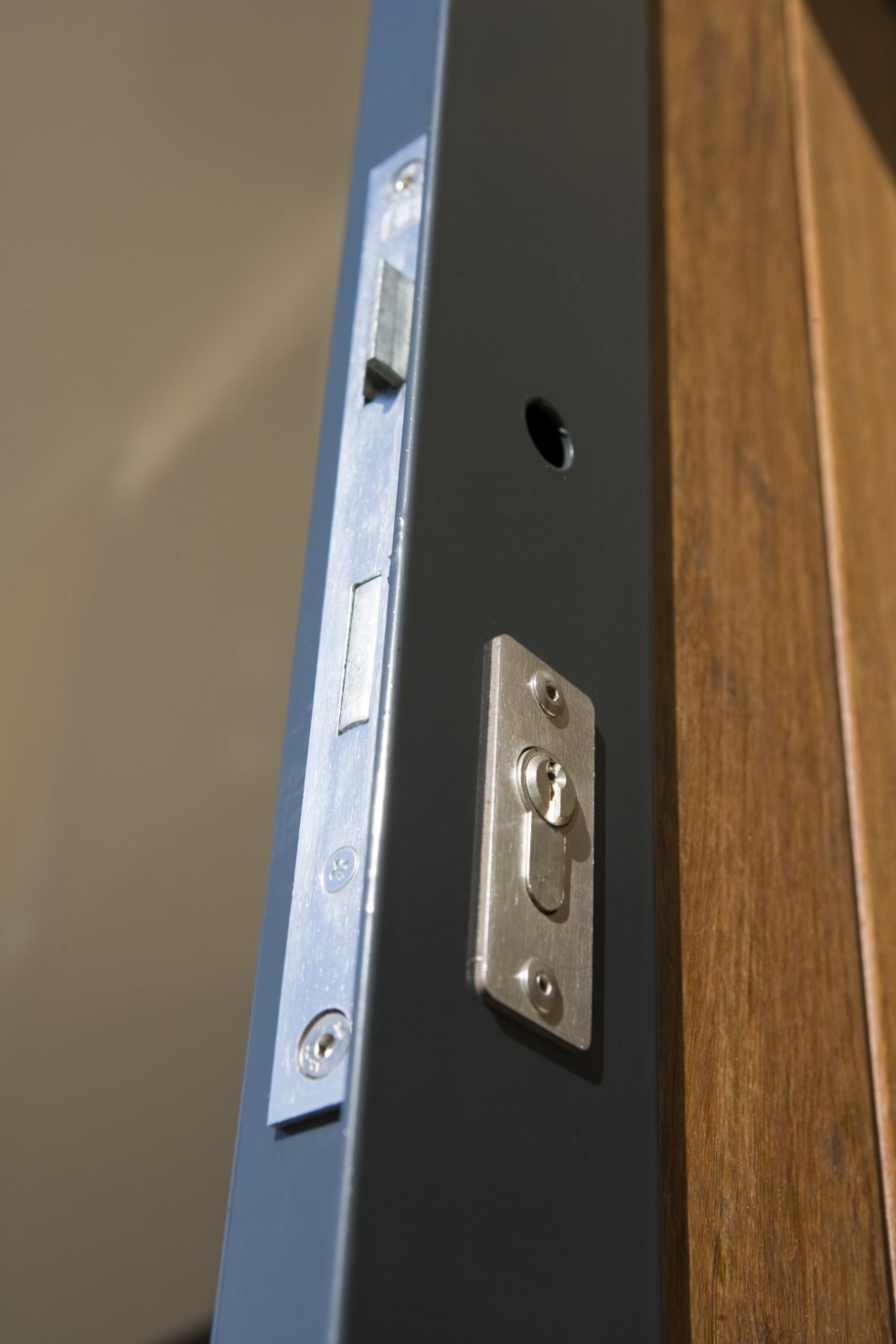

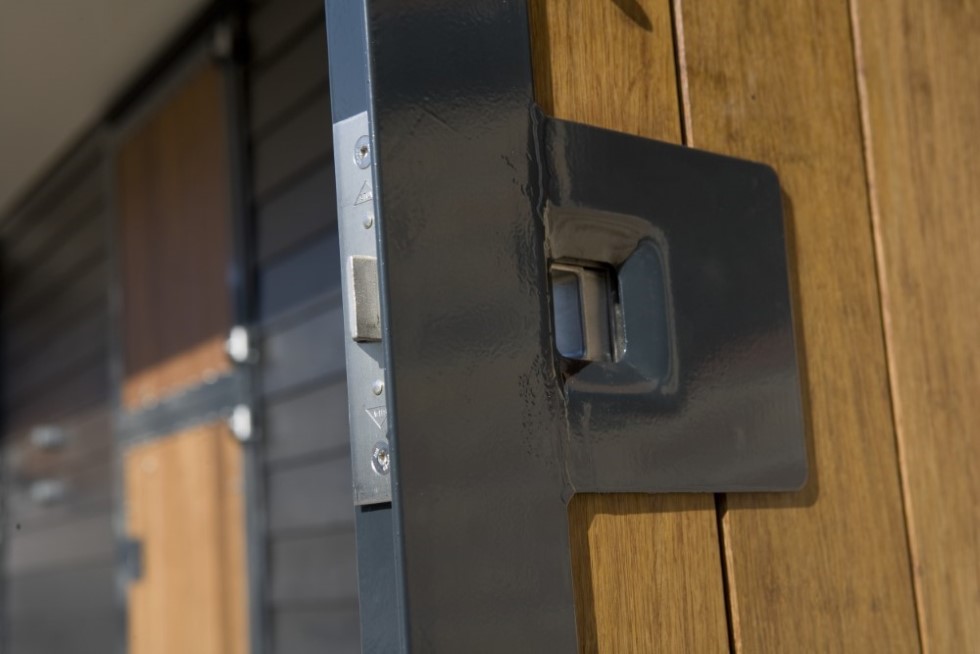

	●	Lower door with built-in lock and top door with cylinder to be operated from inside and outside with a pocket key
	●	Lower door provided with night lock, only to be opened from outside
	●	Solid plastic Govaplast boards black/brown, inclusive Govaplast steel reinforcement profiles. Each board individually attached with stainless steel bolts and rounded nuts.
	●	Stainless steel adjustable hinges
	●	Stainless steel adjustable locking plate

Types
●	External door "Professional" 2300x1200 mm, fully assembled, including plastic boards and galvanised steel sheeting on the inside, also available with arch

●	External door "Professional" 2300x1200 mm, with pre-assembled plastic boards and galvanized steel sheet below, pre-assembled safety glass 3.3.2. (7mm thick) in the top door, also available with arch
●	Frame with bars behind te glass, also available with arch

●	External door "Professional" 2300x1200 mm, with pre-assembled plastic boards and galvanized steel sheet below, pre-assembled tip and turn window system and safety glass 3.3.2. (7mm thick) in the top door, also available with arch

	Options
	●	Anti-weavers grill, fixed on bottom door
	●	Grill, fixed on bottom door

	●	Surcharge for door-knob on inside and outside
	●	Retainer magnet, heavy duty type
	●	Isolated safety glass 2 x 3.3.2 + 10 isolation (23,5 mm thick)

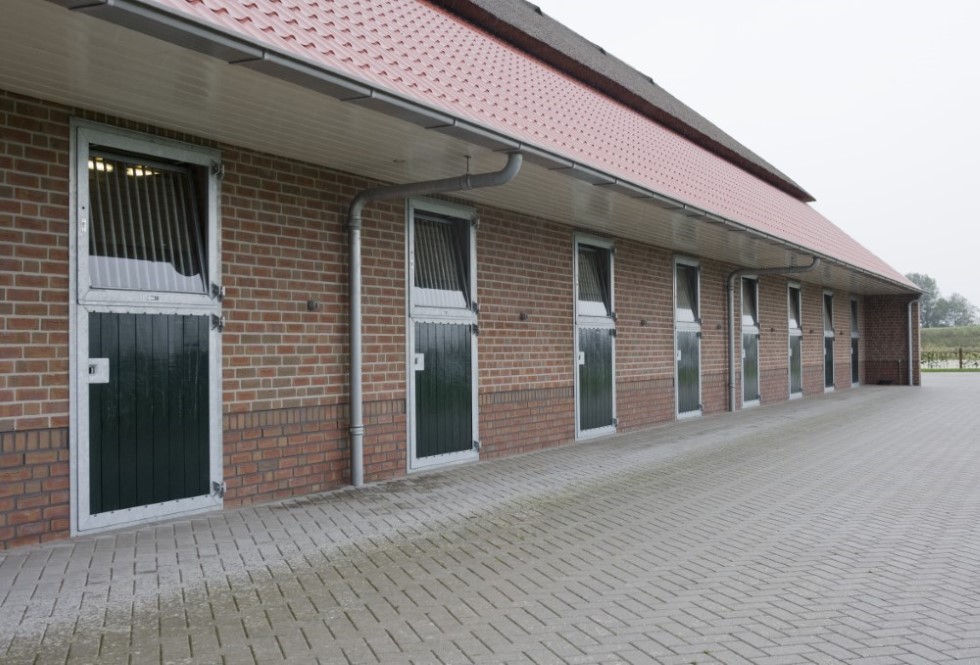

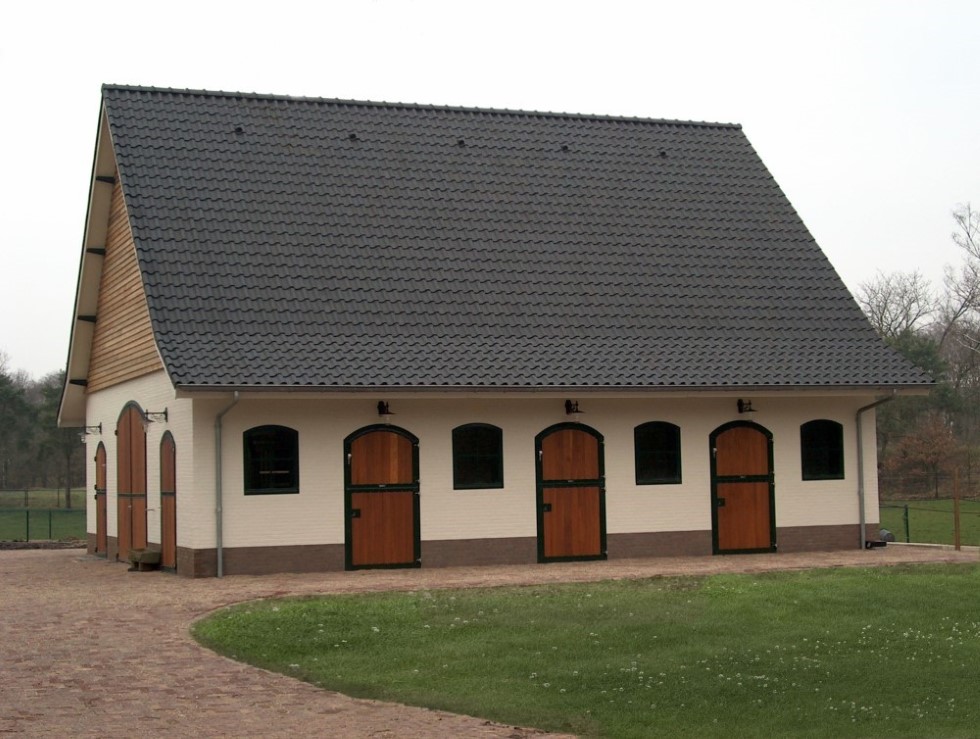

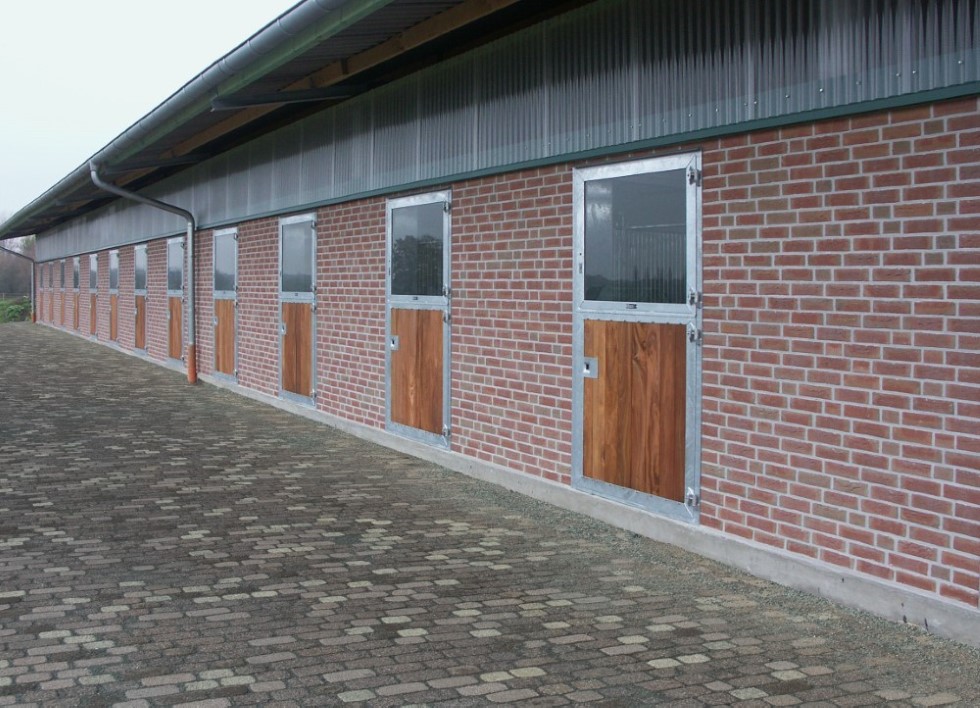

Gallery

Opties


Type "Professional", boards	Type "Professional, glass	Type "Professional, tip-/turn


Type "Professional", boards	Type "Professional, glass	Type "Professional, tip-/turn
with arch	with arch	with arch






Type "Standard", boards	Type "Standard", glass	Type "Standard", tip-/turn
