Horse exerciser


  High quality
  The Corton excellent is a high quality free flow exerciser with a low profile and is therefore not a blot for its surroundings. The central drive unit is shielded with a polyester cover. Corton opts for Safeguard drift fences with flexible bars of strong plastic, coated with aluminium. The control unit has an automatic setback with adjustable speed. An optional individually programmable control box can be supplied. The Excellent is available in six different versions, from 12 tot 20 meter in diameter, for three to six horses


Horse exerciser type "Excellent"

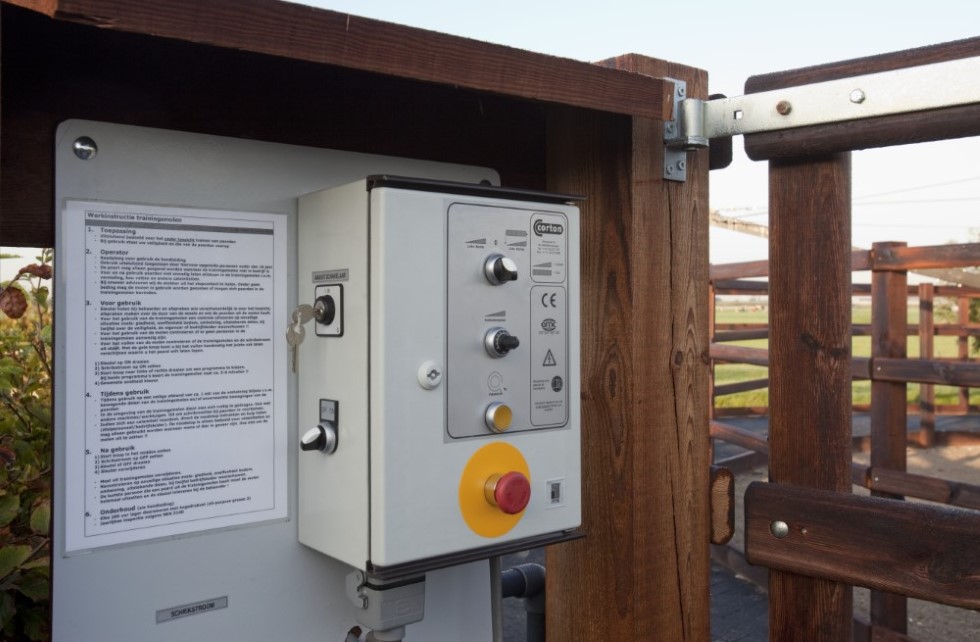

● Easy to operat control box "Excellent", incl. key switch, on/off and emergency stop, switch for adjustable time interval 5/10/15 minutes, switch start/stop
● Non-slip direct drive with flexible coupling
● EMC motor cable and 3 meter of power cord with rubber CEE-plug
● Drive unit with synthetic cover in colour ral 7016 (grey)
● Width of drift fences 2000 mm, width of track 2500 mm
● Adjustable galvanized steel cables between drift fence arms

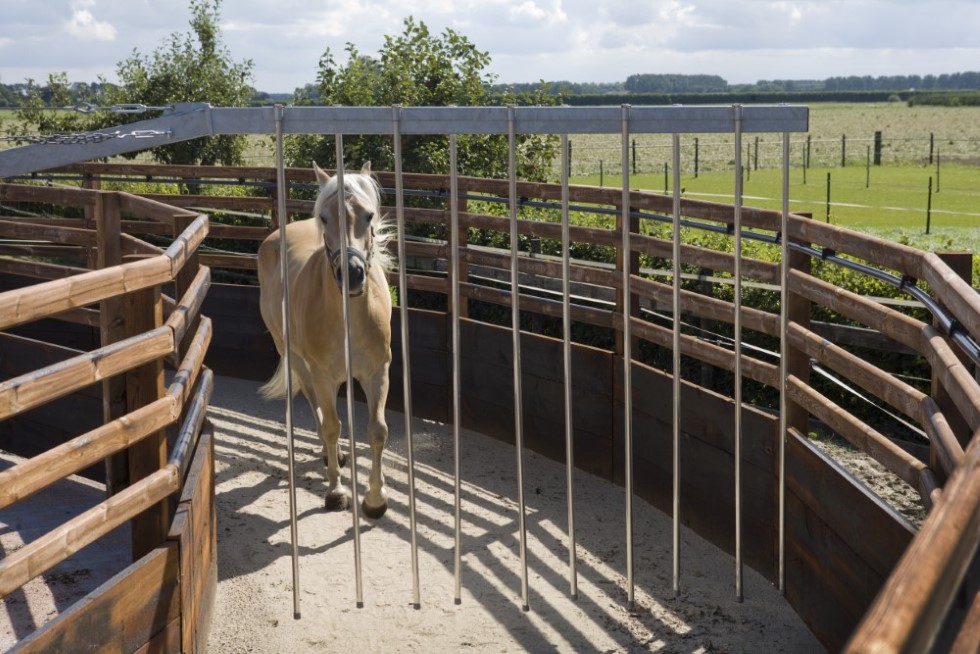

● Swinging drift fences (10 aluminium bars per drift fence)
● Electric shock device, including preparation horse exerciser, electric shock device, cables and earth pin


  Types
  ● Horse exerciser "Excellent", 3 horses, Ø12 meter, SEW 0,50 kw direct drive, 10 aluminium bars
  ● Horse exerciser "Excellent", 3 horses, Ø15 meter, SEW 0,50 kw direct drive, 10 aluminium bars
  ● Horse exerciser "Excellent", 4 horses, Ø15 meter, SEW 0,50 kw direct drive, 10 aluminium bars
  ● Horse exerciser "Excellent", 4 horses, Ø18 meter, SEW 0,75 kw direct drive, 10 aluminium bars
  ● Horse exerciser "Excellent", 6 horses, Ø18 meter, SEW 0,75 kw direct drive, 10 aluminium bars
  ● Horse exerciser "Excellent", 6 horses, Ø18 meter, SEW 0,75 kw direct drive, 10 aluminium bars
  ● Horse exerciser "Excellent", 8 horses, Ø20 meter, SEW 0,75 kw direct drive, 10 aluminium bars



Options
● Automatic lubricating system, incl. battery pack
● Safeguard bars instead of aluminium bars
● Irrigation system on one of the drift fences
● Programmable control box
● Synthetic outdoor protection box for control box
● View blocking pusher in combination with aluminium bars or safeguard bars
● Coating in RAL-colour

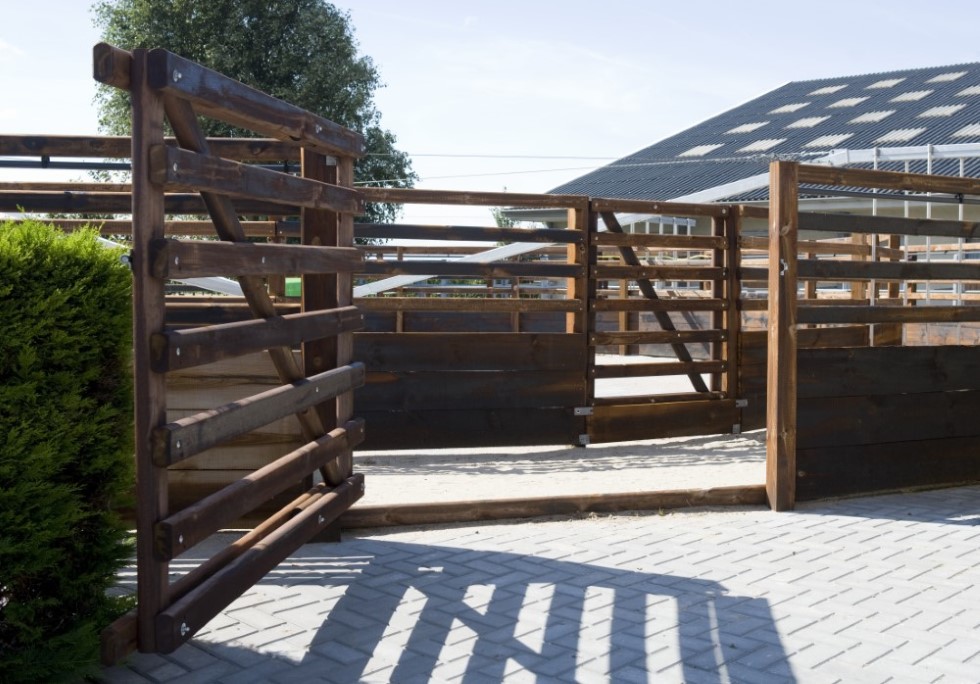

  Wood fence system
  ● Fence made of impregnated pinewood with CREO-LUC
  ● Vertical posts, pinewood 100x100 mm
  ● Bottom boards 250x40 mm,
  ● Horizontal boards rounded 95x45 mm
  ● Standard with 1 bottom board and 2 boards with approx. 630 mm distance between
  ● Outside fence height approx 1700 mm incl. single gate 1400x2000 mm (hxw), adjustable hinges and provided with sliding bolt
  ● Inside fence height approx 1700 mm



Gallery



Opties

|  Planken  |  Ornamenten  |  Hoofdopening  |  Coating  |  Diversen  |   Constructie  |









Type "Excellent"


  Horse exerciser



Why Corton?


Corton stable equipment for horses has been a tradition for over 40 years, both in the Netherlands and abroad. In principal, Corton opts of quality and devotes a great deal of attention to the choice of materials and finishes of its products. We constantly gear the requirementsour products must meet to actual practice, especially when it comes to durability and safety.....read more >

View our inspirational brochure online

Discover our range of equestrian equipment in 80 pages and get inspired by images of our realisations. Compare our state of the art horse stalls and related products.


download brochure >
