Horse stalls type "Professional"


  Strong, durable, safe
  The strong Corton horse stall with extra hihg partitions and some special characteristics. The boards are mounted in unique double flange profiles, making the partitions very steady with a minimum of sharp edges and protrusions. In order to ensure the safety of your horse, the extra thick bars (with large bending stength) are set closely together. Moreover, the bars run through into the profiles, so they are completely stuck in the frame


Professional fronts have a smooth-running wide sliding door with a strong top rail and roller system. This sliding door with guide rollers at the bottom is fitted with a reliable automatic bar locking mechanism. Revolving doors feature adjustable steel pivots and an integrated lock or a parallel closure.
Partitions and rears are optionally equipped with bars or boards at the top. To prevent feed envy, the bar division can be partially closed with boards. To enhance mutual contact between horses, a grille in closed partitions is to be recommended


  Professional partitions are also available in an extra strong version with frame profiles of 60mm wide, extra thick boards, etc. and various systems for turning away or retracting partitions. The horse stalls can also be provided with an extra small door in the sliding door, ventilation grooves between the boards, decorative posts with a nice finish on top, etc.

  After hot-dip galvanizing. Professional fronts and partitions can also get a colour coating in a RAL colour. If you wish, individual bar elements without a colour coating can also be mounted


● Fully closed steel frame construction
● Approximateley 53 mm distance between the bars
● Bottom channels from from the floor
● Both ends of bars punched through the steel channel (no little holes in the bars)
● Heavy duty fittings (no opening in boards)
● Strong detachable rail supports
● Plastic, hardwood or bamboo boards with tongue and groove
● Standard supplied with feed opening
● Steel components are hot dip galvanized in accordance with NEN and ISO 1461
● Fine quality, after galvanizing sharp edges are removed
● Standard fittings inclusive

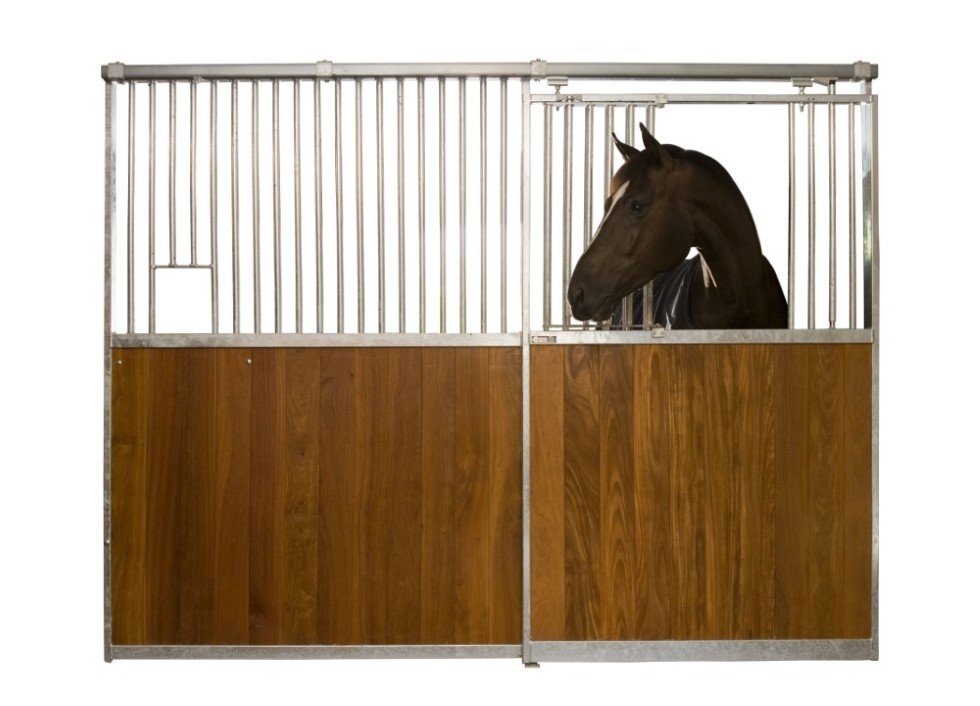

  Front partition with sliding door
  ● Sliding door left or right available
  ● Sliding door standard with opening
  ● Track over full length of partition
  ● Complete frame with separate rail system, incl. heavy duty rail supports
  ● Solid automatic locking bar system
  ● Tandem type roller system, original ROB
  ● Solid Govaplast plastic boards, black/brown and bars Ø28 x 2 mm

  Options
  ● Closed bar section in sliding door
  ● Top door in sliding door, with locking bar
  ● Sliding bar section in feed opening


Rear/Side partition
● Solid Govaplast plastic boards, black/brown and bars Ø28 x 2 mm
● Solid Govaplast plastic boards, black/brown in top and bottom part

Options
● Hardwood or bamboo boards
● Sliding door approx. 300 mm away from side
● Ventilation grooves in boards
● Sight protection in top part
● Sight protection "classic" with elegant arch
● Multi-layer coating in Ral colour
● Immersion of hardwood in a water based oil
● 1 or 2 rows horizontal boads with plates


  The steel parts of all Corton products for the interior of your stable are hot-dip galvanized, which means that they are immersed in a bath of liquid zinc with a temperatur of about 450 degrees Celsius, thus getting an entire layer. The elements are constructed in such a way that they are provided with a zinc layerr both outside and inside, allowing the steel to be optimally protected against construction (rust formation). In case of an extra colour coating, the steel elements are also hot-dip galvanized. The hot-dip galvanizing is carried out in a modern factory according to NEN-EN-ISO 1461 standard

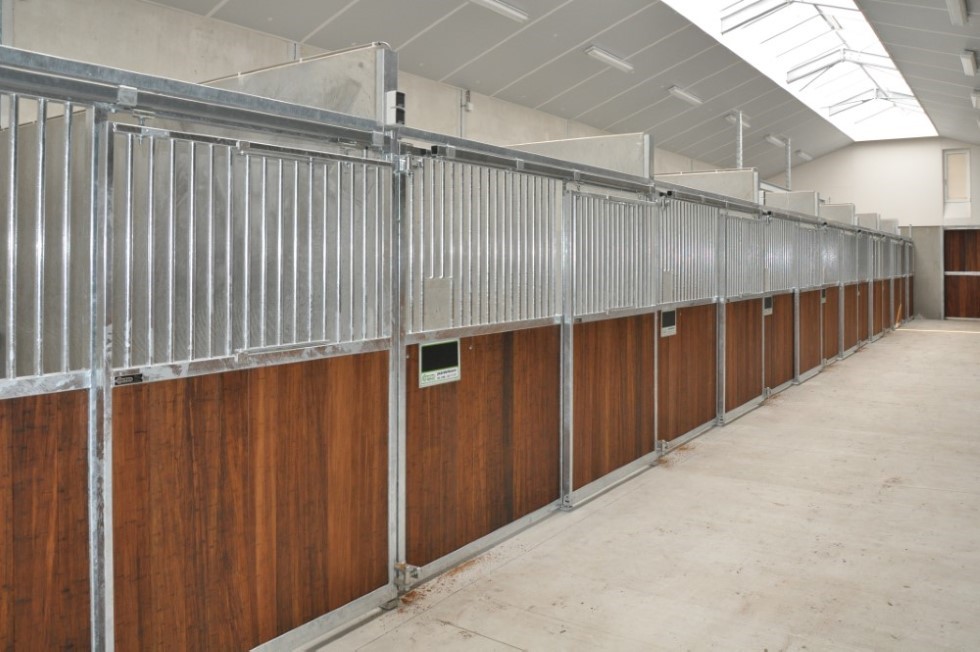

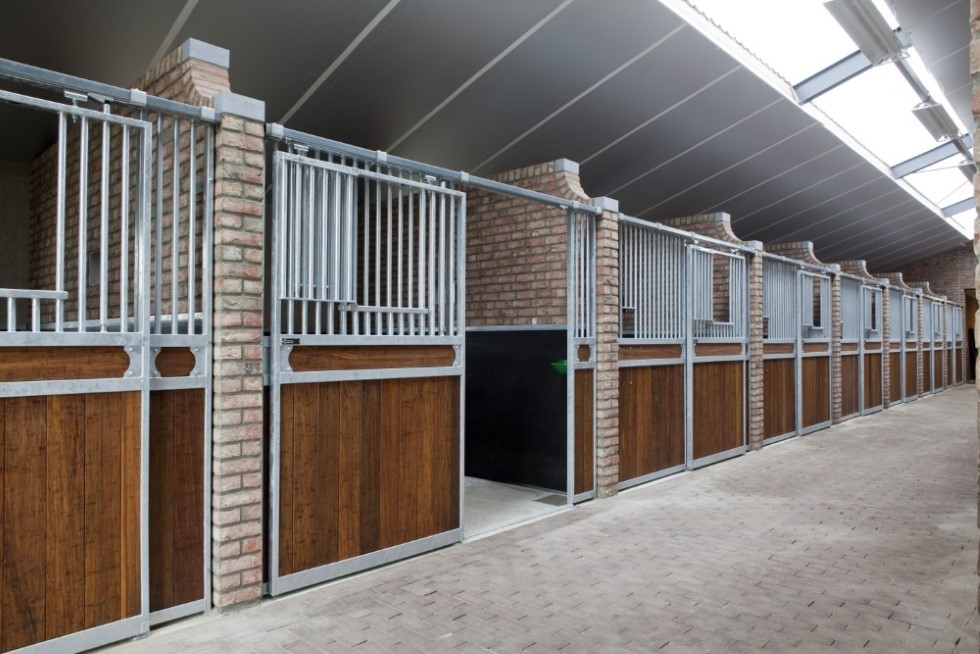

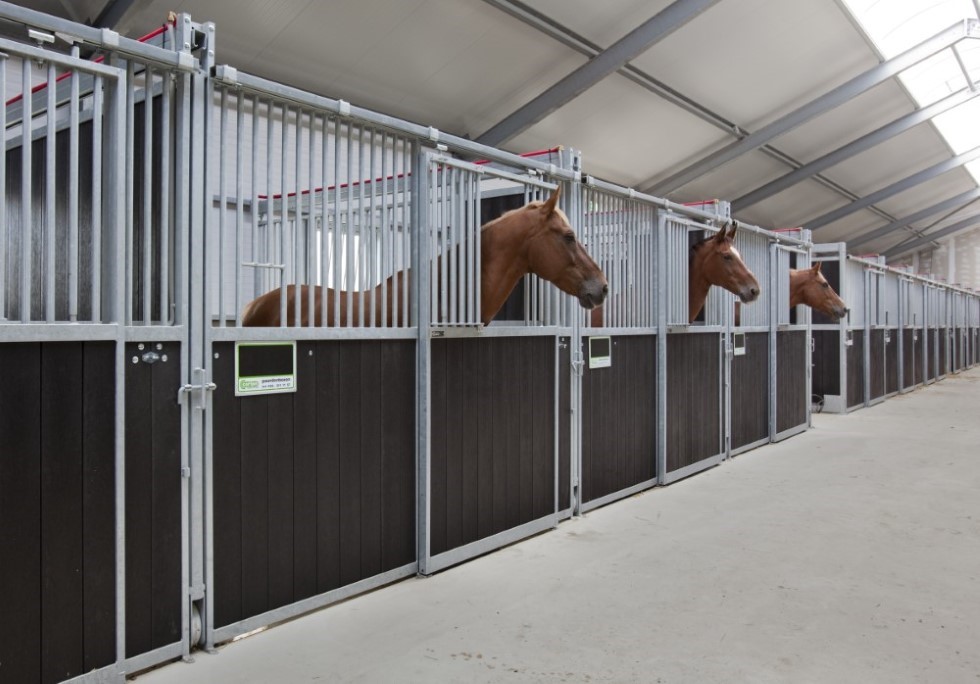

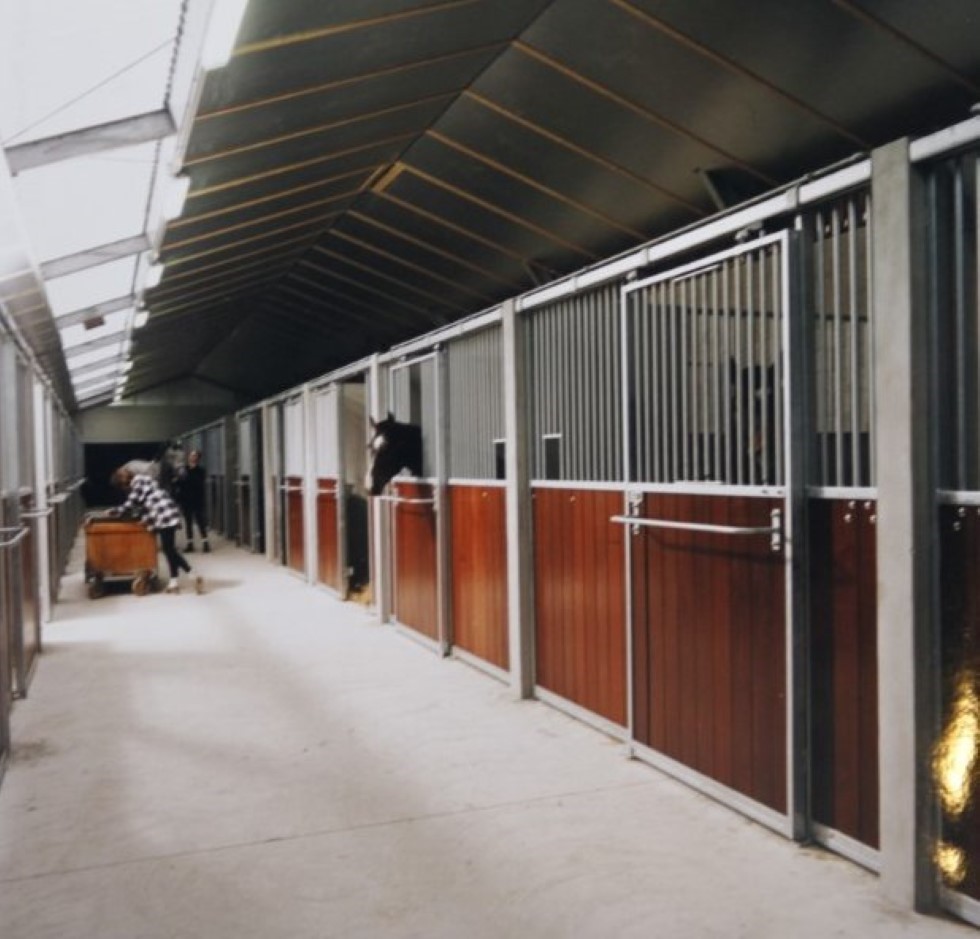

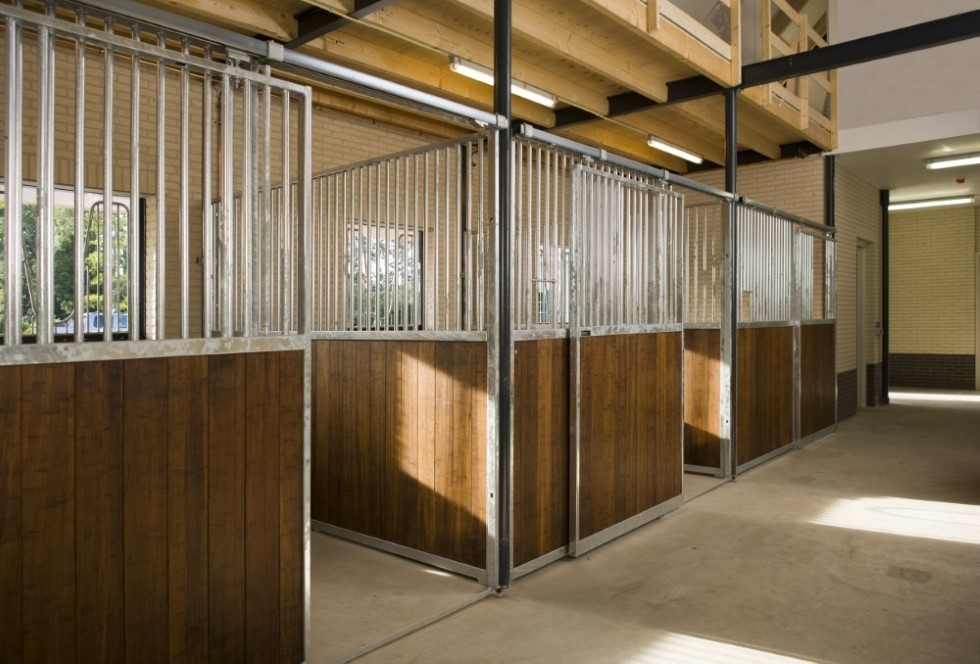

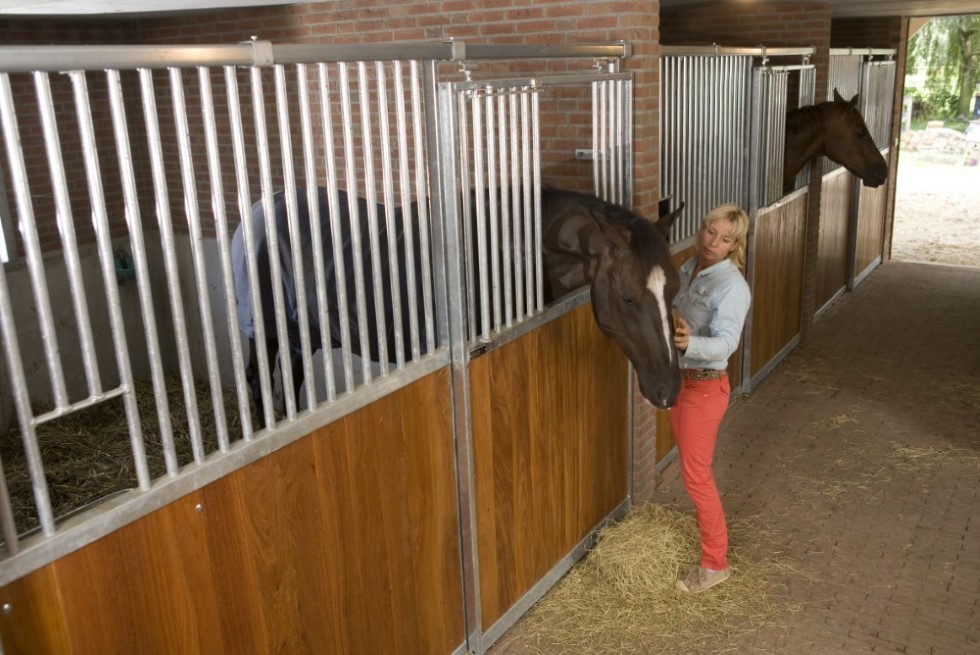

Gallery



Opties

|  Planken  |  Ornamenten  |  Hoofdopening  |  Coating  |  Diversen  |   Constructie  |




Type "Professional"

Type "Professional"

Type "Professional"
Front partition Side partition bars/boards Side partition boards/boards
